INDEPENDENT POWER PRODUCER

A Guide for Independent Power Producer (IPP)

Renewable Energy Generation Proposal Submission & Grid Connection Application Process

Accelerating Renewable Energy Growth​

​Sarawak Energy was appointed as the Single Buyer for electricity in Sarawak following the update of the Electricity (Amendment) Ordinance 2023.​

As the sole purchaser and distributor of power from large-scale renewable energy projects, Sarawak Energy plays a key role in integrating projects from IPPs into the existing energy system. This integration is essential to advancing large-scale renewable generation, supporting Sarawak's commitment to accelerate the development and adoption of renewable energy for a sustainable future.​

This page provides prospective renewable energy developers with key information on developing independent large-scale renewable energy projects and connecting them to Sarawak’s electricity network.​

Large-Scale Renewable Energy Generation​

​With a target of achieving 10GW by 2030, Sarawak Energy is committed to maintaining a generation mix predominantly driven by renewable energy by diversifying its renewable sources, including expanding on solar power capacity. ​

Sarawak Energy recognises the vital role of private sector partnerships in accelerating the deployment of renewable energy projects throughout Sarawak.

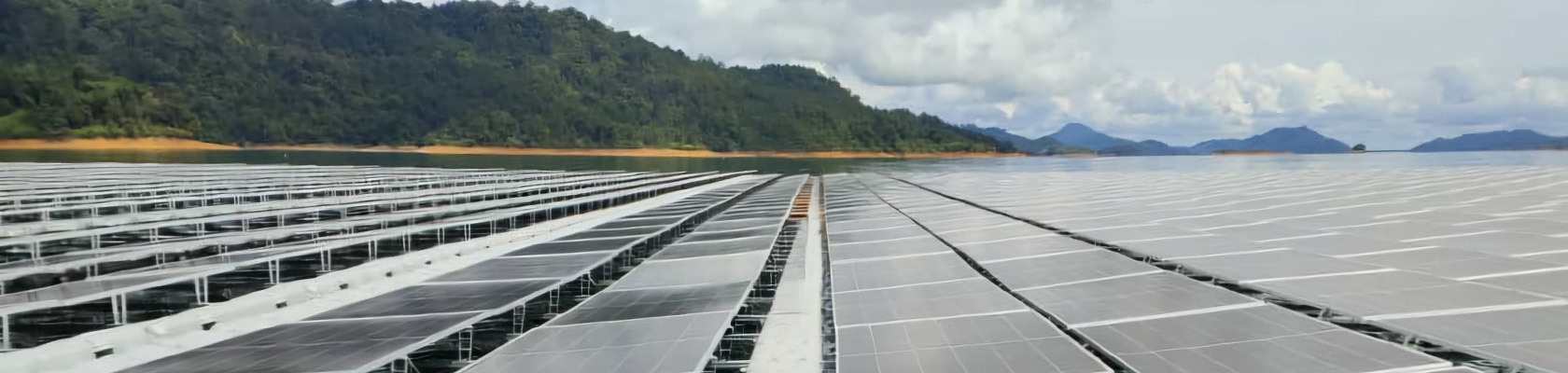

Large-scale solar generation is classified into two types: ground-mounted and floating solar systems.​

Key Consideration to Develop Large-Scale Renewable Energy Generation​

  1. Large-scale renewable energy refers to developments with a capacity of 5MW and above.​
  2. Generation output capacities of 30MVA and above are connected via extra-high voltage transmission​.
  3. Generation capacities below 30MVA are connected via distribution networks.​
  4. Proposed project sites and injection points.

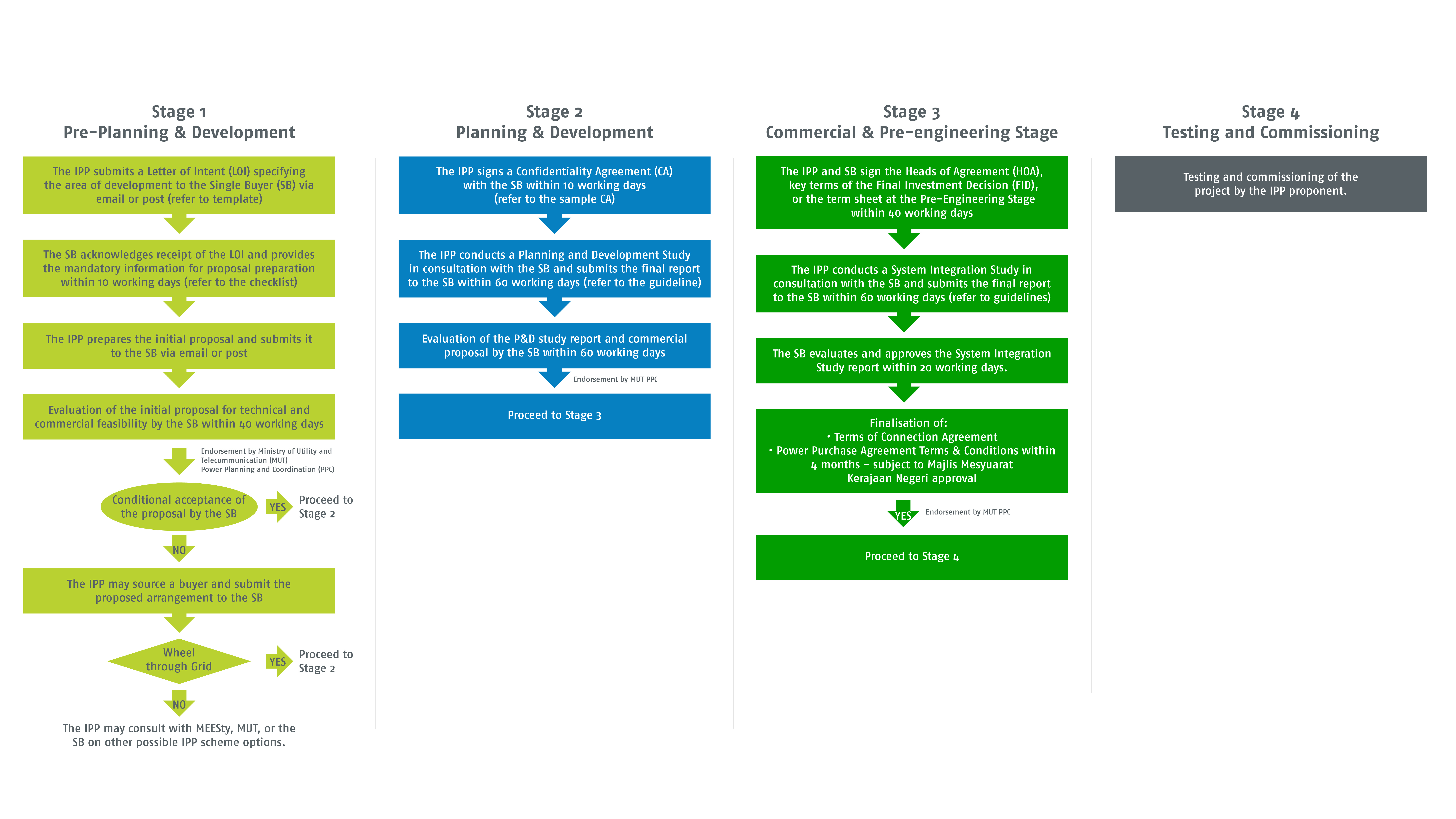

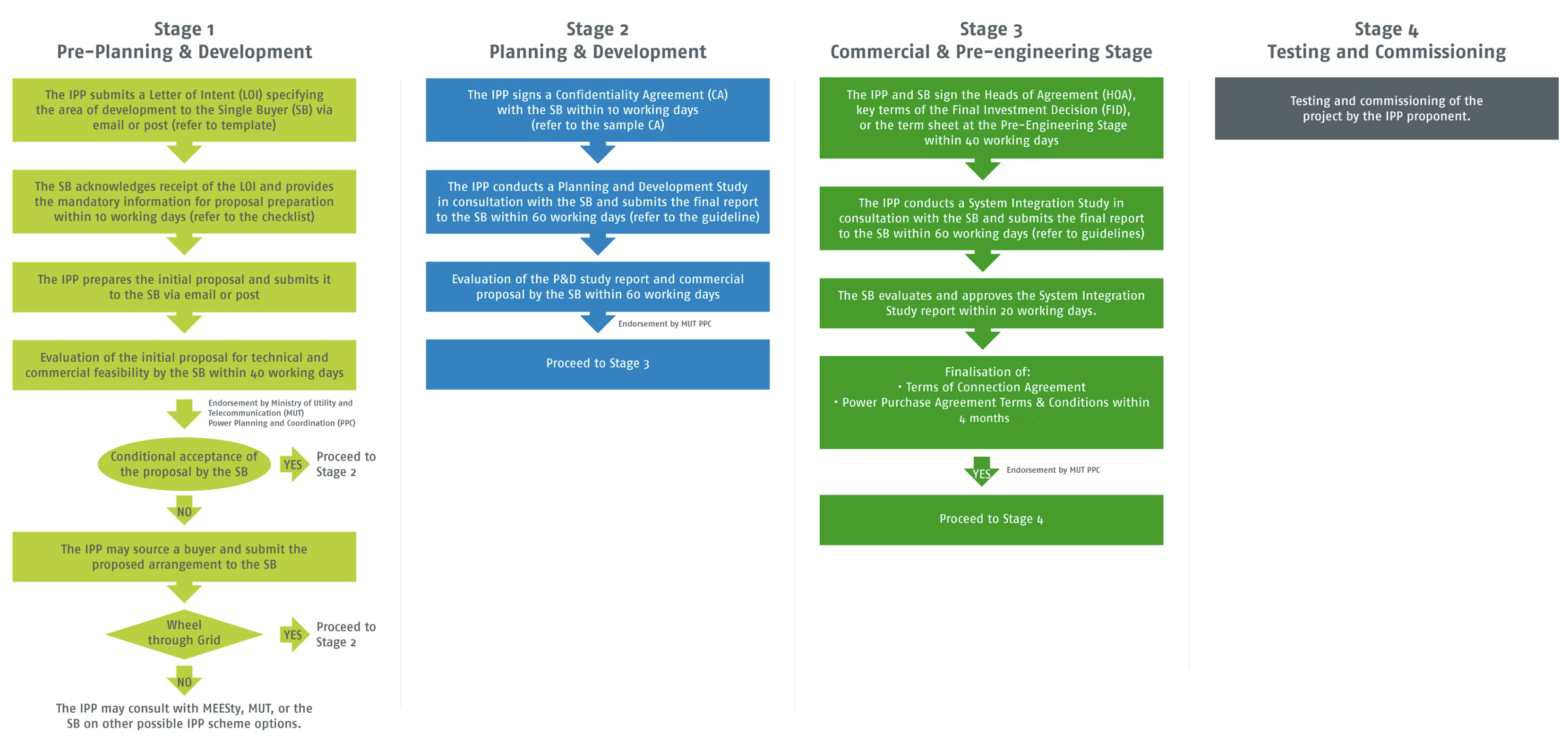

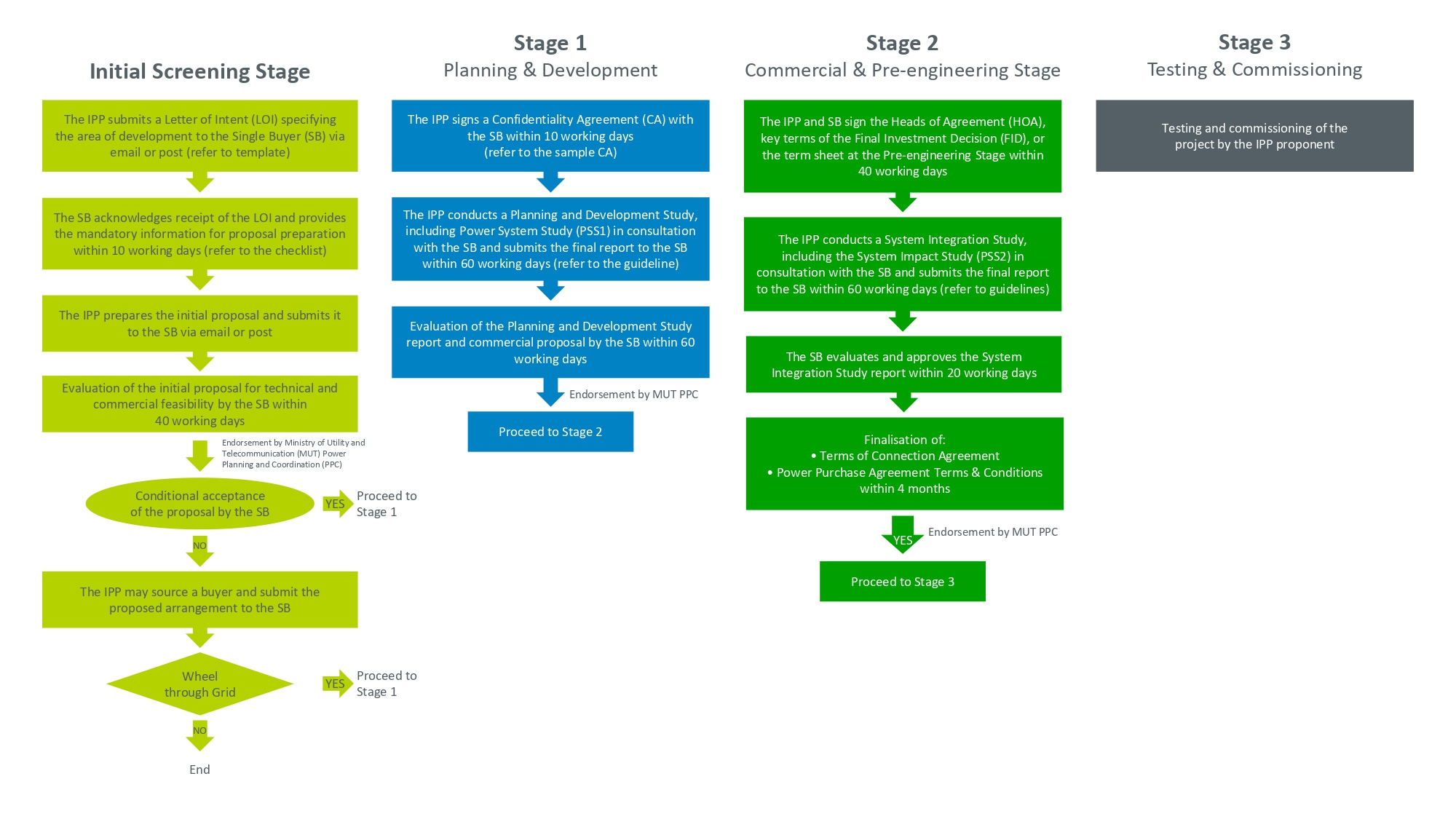

IPP Large Scale Solar Proposal Submission & Grid Connection Application Process in Sarawak Energy

The IPP Large-Scale Solar Proposal Submission and Grid Connection Application Process for Sarawak Energy is illustrated below. ​

To access the documents referenced in the processes above, please refer to the following:

Template LoI: Here
Checklist: Here
Guidelines and Requirements for Large-Scale Solar Connection: Here

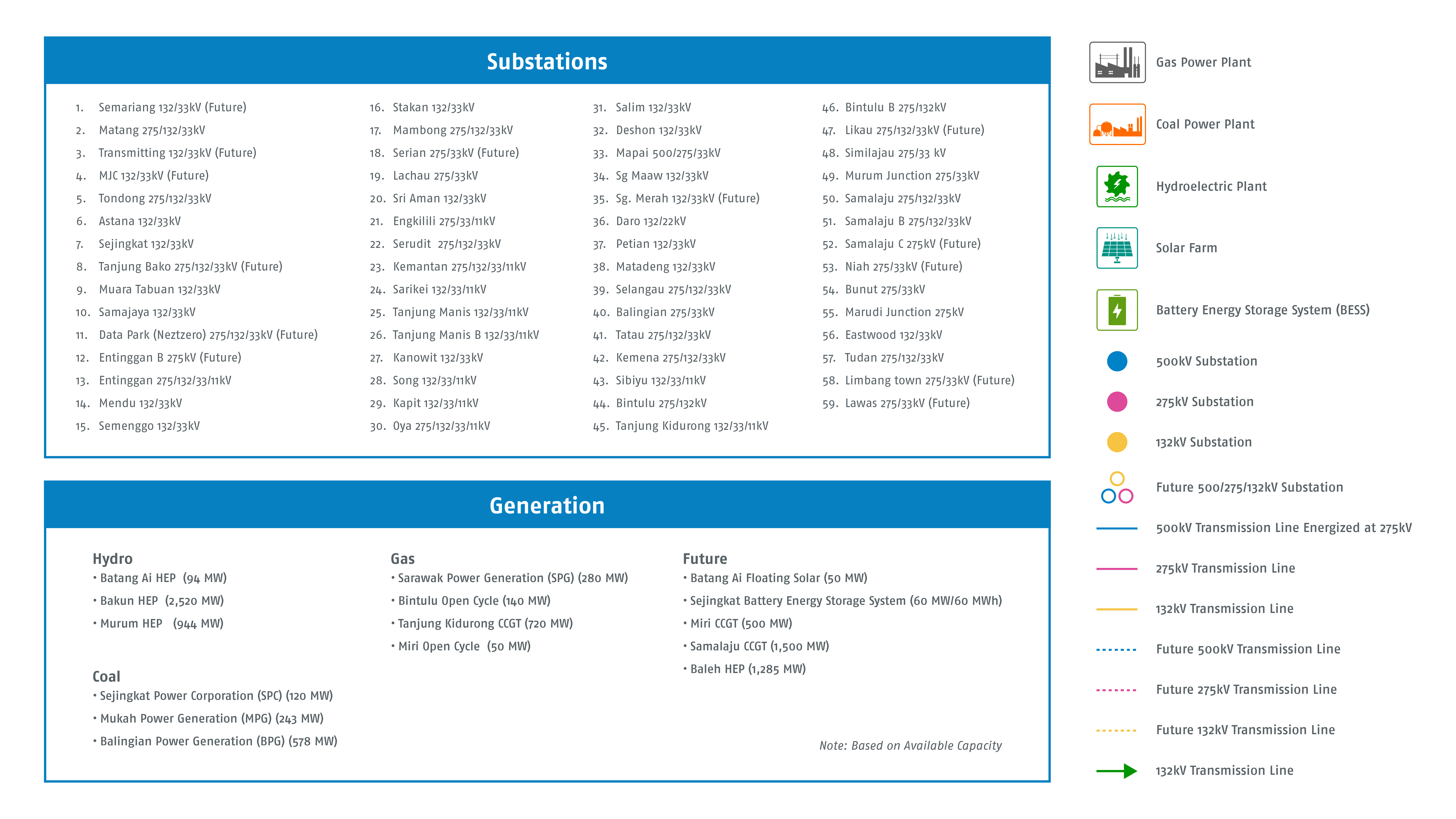

Sarawak Generation and Transmission Map (As Of Q4 2024)

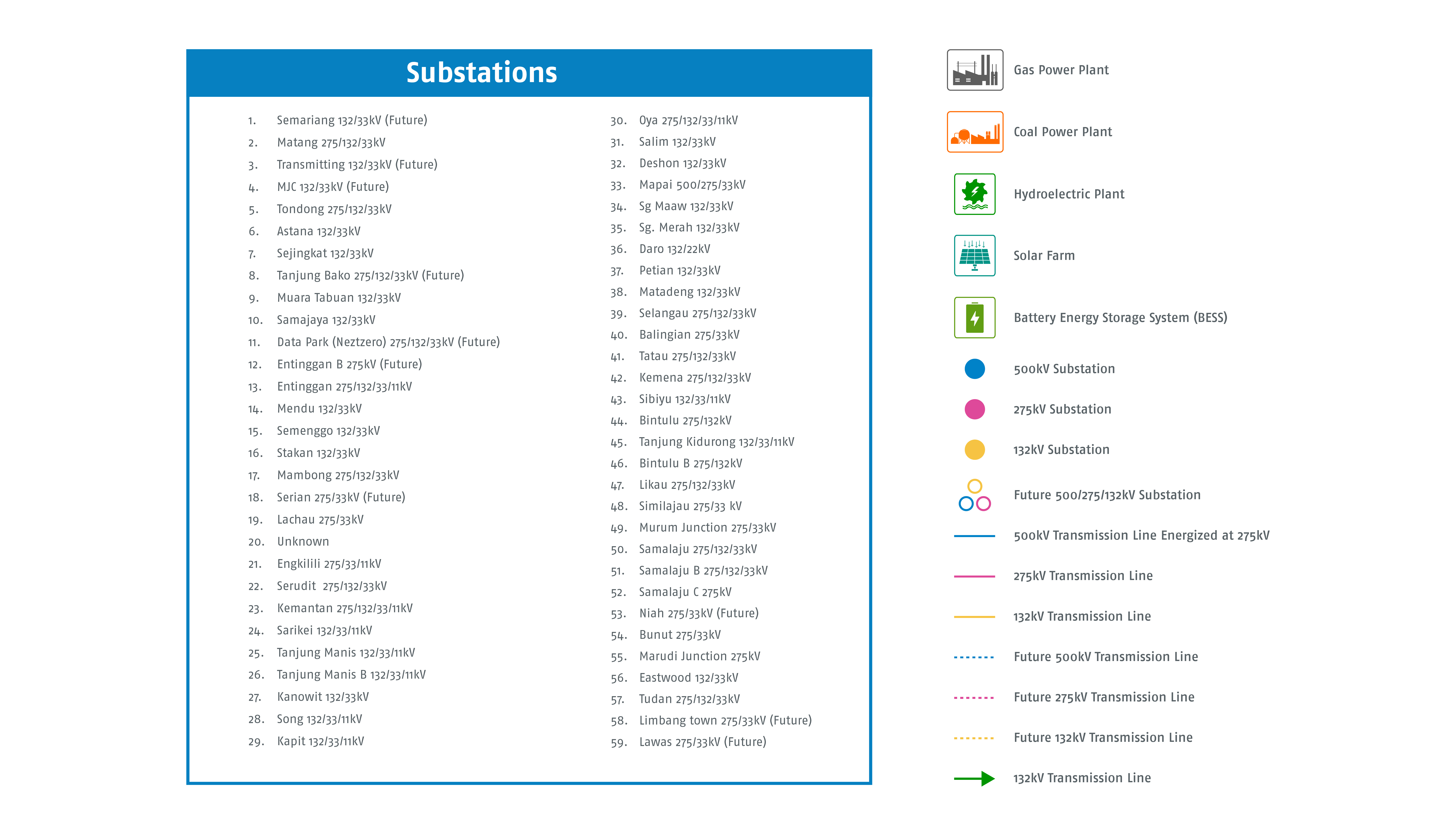

Substations
1. Semariang 132/33kV (Future)
2. Matang 275/132/33kV
3. Transmitting 132/33kV (Future)
4. MJC 132/33kV (Future)
5. Tondong 275/132/33kV
6. Astana 132/33kV
7. Sejingkat 132/33kV
8. Tanjung Bako 275/132/33kV (Future)
9. Muara Tabuan 132/33kV
10. Samajaya 132/33kV
11. Data Park (Neztzero) 275/132/33kV (Future)
12. Entinggan B 275kV (Future)
13. Entinggan 275/132/33/11kV
14. Mendu 132/33kV
15. Semenggo 132/33kV
16. Stakan 132/33kV
17. Mambong 275/132/33kV
18. Serian 275/33kV (Future)
19. Lachau 275/33kV
20. Unknown
21. Engkilili 275/33/11kV
22. Serudit 275/132/33kV
23. Kemantan 275/132/33/11kV
24. Sarikei 132/33/11kV
25. Tanjung Manis 132/33/11kV
26. Tanjung Manis B 132/33/11kV
27. Kanowit 132/33kV
28. Song 132/33/11kV
29. Kapit 132/33/11kV

30. Oya 275/132/33/11kV
31. Salim 132/33kV
32. Deshon 132/33kV
33. Mapai 500/275/33kV
34. Sg Maaw 132/33kV
35. Sg. Merah 132/33kV
36. Daro 132/22kV
37. Petian 132/33kV
38. Matadeng 132/33kV
39. Selangau 275/132/33kV
40. Balingian 275/33kV
41. Tatau 275/132/33kV
42. Kemena 275/132/33kV
43. Sibiyu 132/33/11kV
44. Bintulu 275/132kV
45. Tanjung Kidurong 132/33/11kV
46. Bintulu B 275/132kV
47. Likau 275/132/33kV
48. Similajau 275/33 kV
49. Murum Junction 275/33kV
50. Samalaju 275/132/33kV
51. Samalaju B 275/132/33kV
52. Samalaju C 275kV
53. Niah 275/33kV (Future)
54. Bunut 275/33kV
55. Marudi Junction 275kV
56. Eastwood 132/33kV
57. Tudan 275/132/33kV
58. Limbang town 275/33kV (Future)
59. Lawas 275/33kV (Future)

Disclaimer

All data, information, process flow and timeline outlined in this presentation (including the Sarawak Generation & Transmission Map) (“Information”) are for reference and informational purposes only.

Sarawak Energy reserves the right to modify, update or remove any such Information at its sole discretion without prior notice.

IUsers are advised to exercise their own judgement when utilizing the Information in any manner. Sarawak Energy disclaims any liability for any modifications or adjustments to any such Information and for any consequences arising from reliance on such Information.

Contact information

For more information, please contact our Single Buyer Unit:

Stephen Yee Han Min
Senior Manager, Energy Planning
Email: stephen.yee@sarawakenergy.com
